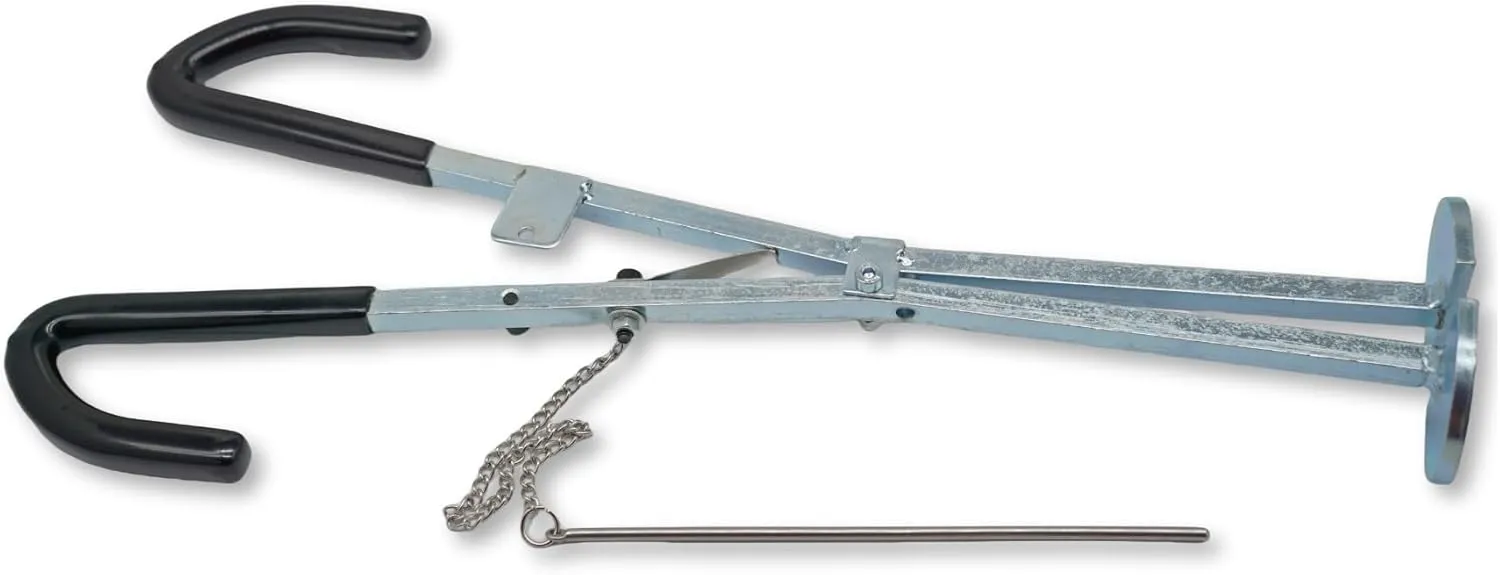

- SeaSierra exhaust bellows expander install tool is used for pulling the exhaust bellows towords bell housing
- Fit Mercruiser Alpha One Gen I & Gen II, Bravo 1 2 3, Blackhawk, MC-1 & R-MR Stern Drive
- Replace OEM: Mercruiser 91-45497A1 91-8M0096108, Mallory 9-79811, Sierra 18-9847
- This tool helps you finish the work of bellow replacing in minutes, simply install the bellow on the gimble housing then stretch the bellow though the exhaust hole in the bell housing and tighten the hose clamp
- Made of premium quality steel, ensuring long-lasting strength and durability, and with features a protective black PVC handle cover that provides a secure, comfortable grip
Seasierra 8M0096108 Bellows Expander Tool for Mercruiser Stern Drive Alpha 1 One Gen 2 Bravo 1 2 3 Boat Engines
Replace OEM: Mercruiser 91-45497A1 91-8M0096108
Mallory 9-79811
Sierra 18-9847
Compatible:
ALPHA ONE (GEN.II) (1998 AND UP) 0L100040 - Up
BRAVO XR ONE (1998 2002) 0L914990 - 0W239999
BRAVO XR ONE (1998 2002 2004 2006-2007 2009) 0W240000 - Up
BRAVO XR SPORTMASTER (1998 2002) 0M052945 - 0M906877
BRAVO XR SPORTMASTER (1998 2002 2004 2006-2007 2009) 0M906878 - up
BRAVO XR THREE (1998 2002 2004 2006-2007 2009) 0W240000 - Up
BRAVO ONE/TWO/THREE (1998) 0W250000 - Up
BRAVO ONE/TWO/THREE (1998) 0M100001 - 0W249999
BRAVO ONE/TWO/THREE (1996-1998) 0F730000 - 0M100000
BRAVO X ONE/TWO/THREE (1998 2013) 0W250000 - Up
BRAVO X ONE/TWO/THREE (1998) 0M100001 - 0W249999
INTEGRATED TRANSOM (1998 2002 2004 2006-2007 2009) 0M052768 - up
INTEGRATED TRANSOM (1998 2002) 0ALL - 0M052767
HI PERFORMANCE TRANSOM (1998 2002 2004 2006-2007 2009) 0W150003 - up
Step-by-Step Guide:
1. Begin by securely installing the exhaust bellows on the gimbal housing.
2. Carefully stretch the exhaust bellows through the exhaust hole located on the bell housing.
3. Finish by tightening the hose clamp to ensure a secure fit.
Important Note: Please remember that the stern drive must be removed to properly use this tool for optimal performance.
Notes: Please check your outboard model, serial number and year carefully before you purchase. If you are not sure, you can contact to us, we are pleasure to help you!
